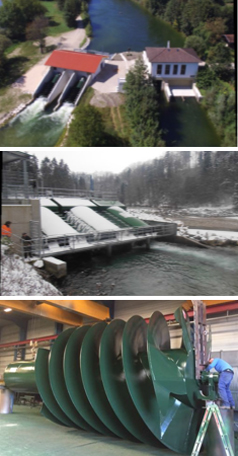

The use of hydro‐screw for power generation has evolved towards a robust alternative for traditional hydropower plants over the last fiveteen years. The construction offers a performance efficience of 80% and up ‐ with outstanding ecological and economic advantages.

Medium voltage switchgears manufactured by TMB Co. These switchgears are type tested, and are suitable for Oil & Gas, Petrochemical, Refineries, Cement factories, Generating Stations, Power Center, SUB & Main Distribution, with voltage level up to 36KV.

Specifications:
SF6 and Vacuum circuit breakers can be implemented in MV panels.
Completely type tested.
Breaker Compartment, Cable Compartment, and Bus Bar Compartment are tested for Internal Arc Fault individually.
MV Switchgears are designed as draw out to facilitate replacement of circuit breaker easily and without power interruption in the main panel.
Design and manufacturing of panels are according to the following standards.
IEC 62271-200, DIN EN 62271-200
MV switchgears can be designed for voltage levels of 12KV, 24KV, and 36KV levels.
MV switchgears can be designed for current levels of ln=3150A, and short circuit of lcw=31.5KA, 3sec.
MV switchgears can be designed for cable connection, or Bus Duct connection from top or from bottom.
MV switchgears can be designed for IP4x protection degree.
MV switchgears are designed in Compartmentalized Metal Clad.
MV switchgears are to enable to be extended from both side by extending BUS BARs.
MV switchgears are designed with mechanical interlocking, and earthing switch.

Low voltage SIVACON 8PT switchgears manufactured by TMB Co. under Siemens license. These switchgears are type tested (TTA), suitable for Oil & Gas, Petrochemical, Refineries, Cement factories, Generating Stations, Power Center, SUB & Main Distribution, MCC, Automation, Capacitor Bank Specifications:
These switchgears are manufactured as Fixed type, Modular or Plug – in, and Draw Out
These switchgears are completely type tested TTA
Being Modular will facilitate any change in components, and feeders in shortest time and without power interruption.
Panels are manufactured according to the following standards.
IEC 60439-1
DIN EN 60439-1
IEC 61641
VDE 0660 PART 500
VDE 0660 PART 500, Supplement 2

These are cables for all kinds of floating vehicles except oil and natural gas drilling platform. The cables can be produced according to IEC60092/350, IEEE45 and some other standards. We have may type approval certificates for our shipboard cables from ABS, BV, DNV, GL, LR, ClassNK, RINA, RMRS, GOST and Turkish Lloyd.

It includes cables in relation to petroleum and natural gas drilling platform. These cables are produced according to NEK606, IEEE1580 IEC60092/350 and some other standards. We have lots of type approval certificates from ABS, BV, DNV, GL, LR, Class NK, RINA, RMRS, GOST and Turkish Lloyd for our offshore cables.

They include cables for strip and underground coal mines and other types of mines. These cables are produced according to the standards and specifications of each country. The catalogue of these products include mine cables which are produced according to the below standards. Turkish Mining General Directorate specifications; MGM-101, MGM-109, MGM-110, MGM-111, MGM-112, MGM-115 and MGM-118 German standards; DIN VDE 0250-812 and DIN VDE 0250-813 British standard; BS6708 Australia / New Zealand standards; AS/NZS 1802 and AS/NZS 2802

These are cables for areas like construction industry, industrial plants and household devices. All these products are produced according to related standards.

They are heavy duty cables used in railways, locomotives and railway cars for control and signalization. Tick in order to see the part about these products from our Industrial Cables Catalogue.

They are special cables used in airports for runway illumination and signalization. Tick in order to see the part about these products from our Industrial Cables Catalogue.

Specifications :
IP : IP 68 - IK 10
Working temperature : -15°C to 40°C
Nominal power :
Single-phase sets for sigle-phase networks : 1 to 50 kVA
Single-phase transformers for three-phase networks : 1 to 50 kVA
Three-phase transformers for three-phase networks : 5 to 160 kVA
Primary voltage : 950-5500-6600 V
Standards : NFC 52410

ALL THE ADVANTAGES OF EPOXY RESINS For single phase disconnectable transformers from 1 kVA to 50
kVA or three phases from 5 kVA to 32 KVA

The use of epoxy resin guarantee the following characteristics :
- Corrosion resistant, remain unchanged over time
- Watertight and immersible
- Insulated
- Can be buried into purposely designed pits

PITS INTERLOCKING
The intelocking key can activate a safety lock N°7 to release the grid located inside the inspection pit between access covering and transformer.
Only specific parts corresponding to figures 5, 7 and 8 are listed on Augier price list.

The Augier-Box Programmable Logic Controller monitors all the elements of the electrical lighting cabinet and all events that occur on network.
Augier-Box is equipped with a GSM / GPRS modem which warns you :
By means of SMS, directly on your mobile phone.
Through monitoring station

Specifications :
-IP : IP 20
Three-phase transformers for three-phase Dimensions (mm) : L 160 x P 58 x h 90
Temperature :  -20°C to 55°C
Power supply : 230 +/- 10%, 45 Hz to 65 Hz
